Orient Technical Marine Co., Ltd supplies all models of temperature calibrator for oil tanker from SIKA – Germany, TEK KNOW - EU, NAGMAN - India, RIKEN – Japan…

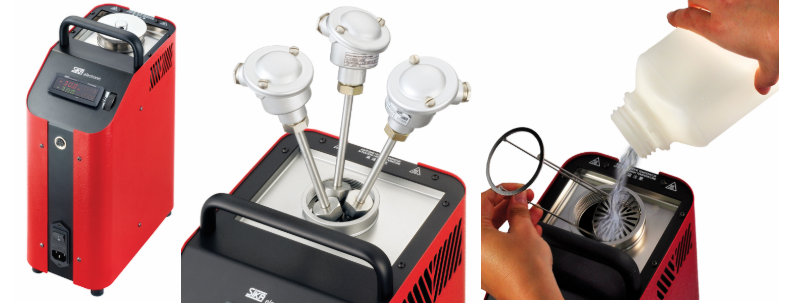

| SIKA MICRO TEMPERATURE CALIBRATOR | |
| TYPE TP M255S | TYPE TP M165S |
|
- Temparature range: RT .... 255oC - Accuracy: +/- 0.2oC - Stability: +/- 0.05oC - Resolution: 0.01oC between -9.99... 99.99oC)/ else 0.1oC - Block dimensions: D60 x 170mm - Power supply: 220 VDC/50/60 Hz - Power consumption: Approx. 375W |
- Temperature range: -35oC to 165oC - Accurancy: +/- 0.1oC - Stability: +/- 0.05oC - Resolution: 0.01oC (đến 99.99oC)/ 0.1oC (dãy đo còn lại) - Block dimensions: D60 x 170mm - Power supply: 220 VDC/50/60 Hz - Power consumption: Approx. 1000W |
|
|
|

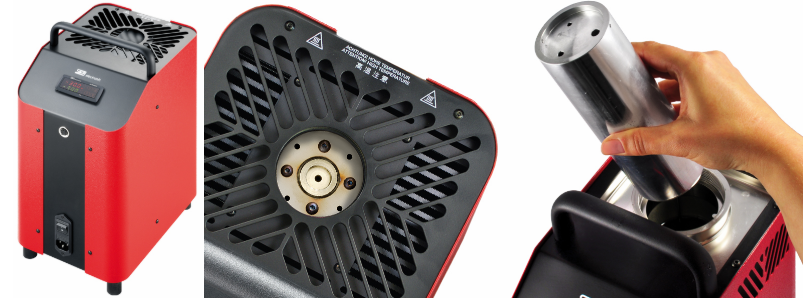

| SIKA DRY BLOCK TEMPERATURE CALIBRATOR | |
| TYPE TP 17200S |
- Temperature range: -55oC to 200oC - Accuracy: +/- 0.2oC - Stability: +/- 0.05oC - Resolution: 0.01oC between 99.99oC/ else 0.1oC - Block dimensions: D28 x 150mm - Power supply: 100 - 240 VDC/50/60 Hz |
| TYPE TP 17165S |
- Temperature range: -35oC to 165oC - Accuracy: +/- 0.2oC - Stability: +/- 0.05oC - Resolution: 0.01oC between 99.99oC/ else 0.1oC - Block dimensions: D28 x 150mm - Power supply: 100 - 240 VDC/50/60 Hz |
| TYPE TP 17166S |
- Temperature range: -35oC to 165oC - Accuracy: +/- 0.2oC - Stability: +/- 0.05oC - Resolution: 0.01oC between 99.99oC/ else 0.1oC - Block dimensions: D60 x 150mm - Power supply: 100 - 240 VDC/50/60 Hz |
| TYPE TP 17450S |
- Temperature range: RT ... 450oC - Accuracy: +/- 0.3oC - Stability: +/- 0.05oC - Resolution: 0.01oC betwwen 99.99oC/ else 0.1oC - Block dimensions: D60 x 150mm - Power supply: 220 VDC/50/60 Hz |
| TYPE TP 17650S |
- Temperature range: RT ... 650oC - Accuracy: +/- 0.4oC - Stability: +/- 0.05oC - Resolution: 0.01oC between 99.99oC/ else 0.1oC - Block dimensions: D28 x 150mm - Power supply: 110/ 220 VDC/50/60 Hz |
|
|
|

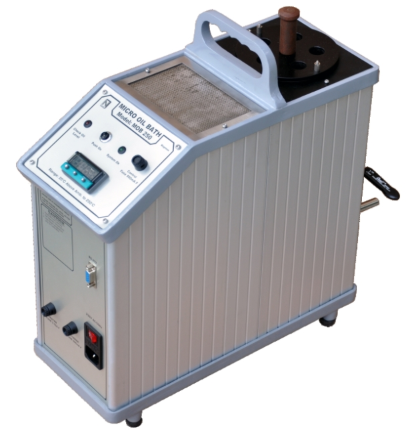

| NAGMAN MICRO OIL BATH | |
| TYPE MOB 250 |
|
|
- Range: 20oC above ambient to 250oC - Accuracy: +/- 0.6oC - Stability: +/- 0.1oC - Resolution: 0.1oC - Block dimensions: D95 x 170mm - Chamber capacity: 1500 ml - Power supply: 220 VDC /50 Hz - Medium: Special silicon Oil |
|

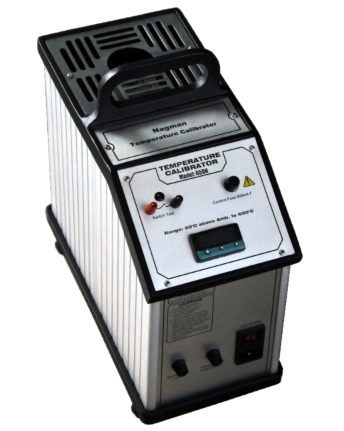

| NAGMAN DRY BLOCK TEMPERATURE CALIBRATOR | |
| TYPE 650H / 650H2 |
|
|
- Range: 20oC above ambient 650oC - Accuracy: +/- 1.5oC - Stability: +/- 0.5/ 0.6oC - Resolution: 0.1oC - Block dimensions: D25 x 110/ 190 mm - Power supply: 220 VDC /50 Hz |
|

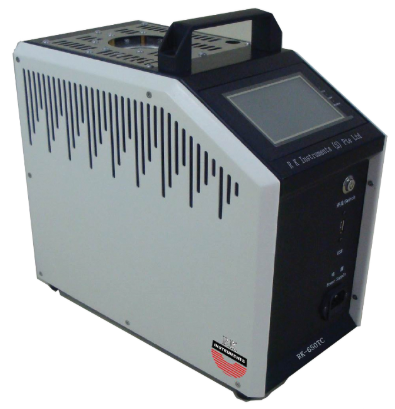

| RIKEN KEIKI DRY BLOCK TEMPERATURE CALIBRATOR | |
| TYPE RK-650TC |
|
|
- Range: 20oC above ambient 650oC - Accuracy: +/- 0.5oC - Stability: +/- 0.1oC - Resolution: 0.1oC - Block dimensions: D35 x 160mm - The number of checking hole: 5 (D4 – D18 mm) - Power supply: 220 VDC /50/60 Hz |
|
